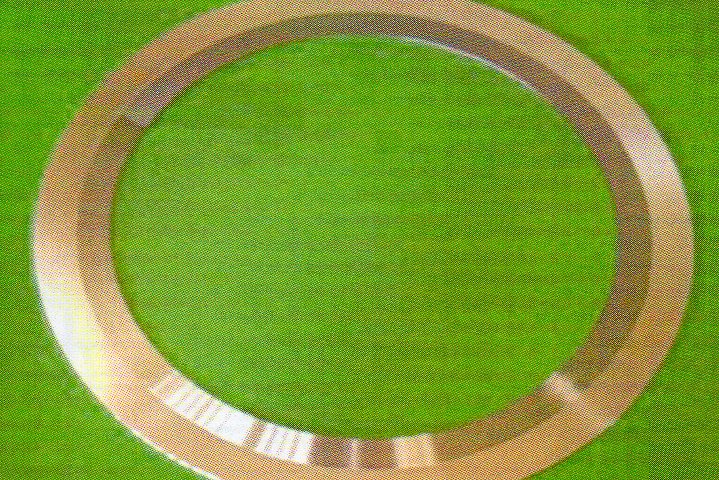

| Type C |
|
|
|
|
| Basic construction style. Suitable for tongue |
|
| and groove, male and female or flat face |
|
| and recess flanges. |
|
|
|
|
|
|
| |
|
|
|
|
 |
|
| Type C/IR |
|
|
| Identical to the Type C but fitted with the |
| protective inner ring which gives high |
| pressure and temperature capabilities with |
| improved sealing performance. Used on |
| male and female flanges. |
|
|
| |
|
|
|
|
|
| Type SG |
|
|
|
|
| As Type C but fitted with an external ring |
|
| which accurately centralises the sealing |
|
| element. In addition the ring provides extra |
|
| radial strength and acts as a compression |
|
| stop. Generally used on raised face and flat |
| face flanges.Type |
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
 |
|
| Type SG/IR |
|
|
|
| Identical to the Type SG but also fitted with |
| an inner ring to prevent damage to the |
|
| gasket bore and inner windings. It also acts |
|
| as a heat shield and corrosion barrier and |
|
| improves recovery characteristics and |
|
| sealing performance. |
|
|
|
|
|
|

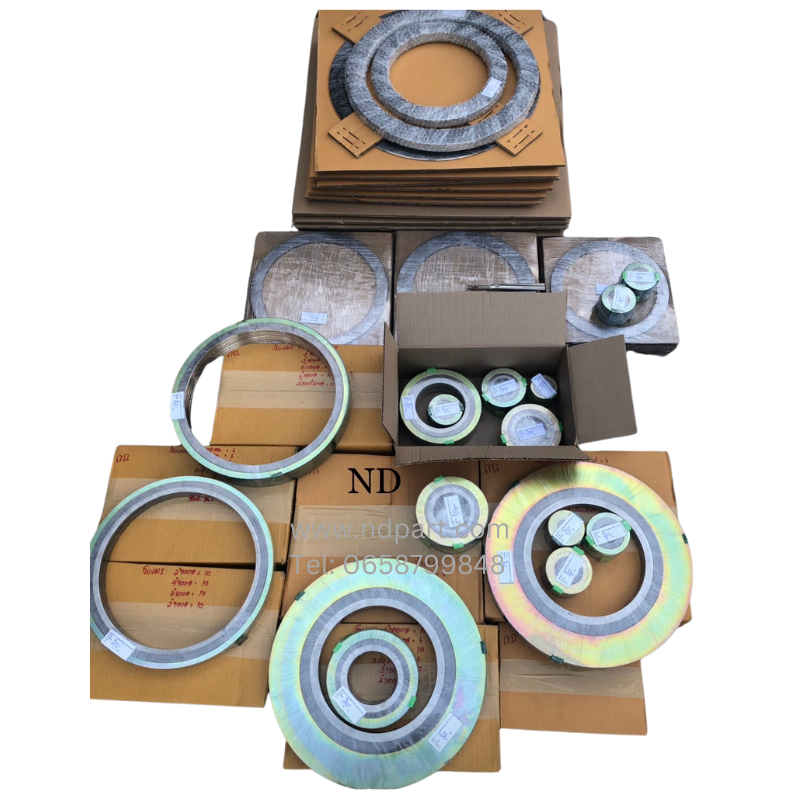

.png "ปะเก็นตัดตามแบบ spiral wound")
